상세 정보 |
|||
| 유형: | LED 라이트 바 | 광원: | 주도의 |
|---|---|---|---|
| 입력 전압: | DC24V | 램프 전력: | 24W |
| IP 등급: | IP65 | 보증: | 2년 |
| 빔 각도: | 선택적인 20' /30' /40' /20*40' /60' | 채널: | 4/6/7/16CH |
| 수명: | 50,000시간 | 밝은 색상: | RGB |
| 순중량: | 1.5KG | 힘: | 24W |
| 제품 크기: | 1000*35*63mm | 전압: | AC110-240V |
제품 설명

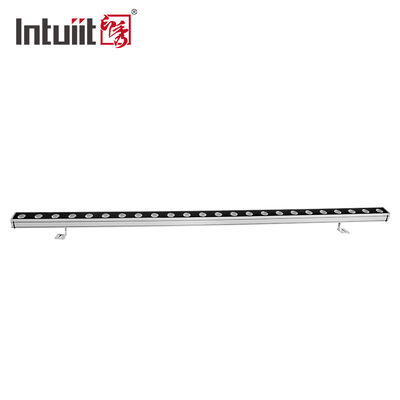

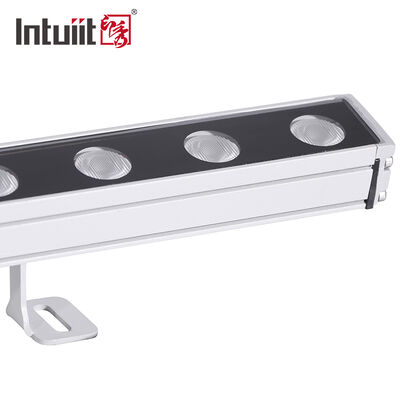

IXQ18A – High-Performance Outdoor LED Linear Washer Light
Designed for all-weather architectural and landscape lighting, the IXQ18A delivers vivid color mixing, flexible control, and reliable IP65 protection.
Key Specifications
Power: 24W
Protocol: DMX512 + RDM (supports remote device management)
Color Options: RGB / RGBW / 1800K~6500K tunable white
Lengths Available: 0.3m, 0.5m, 1m (seamless splicing supported)
Voltage: DC24V (safe for outdoor installations)
Key Advantages
True Color Mixing – High-uniformity optics for smooth gradients and pixel-level effects.

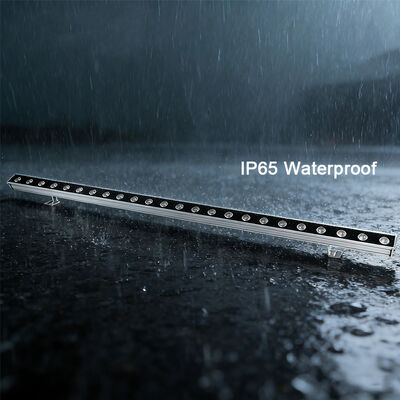

Weather-Ready – IP65 rated, lightweight, compact, and operable in extreme conditions.

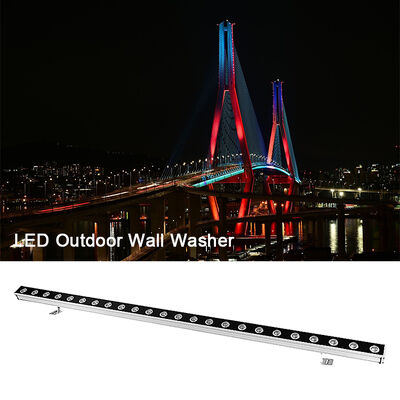

Smart Control – Individual section control enables dynamic pixel mapping for hotels, malls, bridges, squares, municipal buildings, and landscape projects.
Best For
Facade grazing, bridge contouring, park pathways, building outlines, and any outdoor installation requiring vivid, programmable lighting.
Specification:
| Item Number | IXQ18A01(1M) IXQ18A06(0.5M) IXQ18A07(0.3M) |
IXQ18A03(1M) IXQ18A08(0.5M) IXQ18A09(0.3M) |
IXQ18A10(1M) IXQ18A11(0.5M) IXQ18A12(0.3M) |
IXQ18A13(1M) IXQ18A14(0.5M) IXQ18A15(0.3M) |
IXQ18A17(1M) |
| LED Qty | 24pcs(1M) / 12pcs(0.5M) / 6pcs(0.3M) | 16pcs(1M) / 8pcs(0.5M) / 4pcs(0.3M) | 16pcs(1M) | ||
| Beam Angle | 20°/30°/40°/20*40°/60°Optional | ||||
| Spot Angle | 40°/50°/75°/45*75°/100°Optional | ||||
| Lumen | 2350lm / 1160lm / 570lm | 960lm / 575lm /320lm | 1040lm / 610lm / 350lm | 1040lm | |
| CRI | Ra≥70 | / | / | / | |
| Color Tempreture | 2700∽6000K Optional | RGB | RGBW(W:3000 / 4000 / 6000K Optional) | ||
| Product Measurement | 1000*35*63MM(1M) / 510*35*63MM(0.5M) / 300*52*101MM(0.3M) | ||||
| N.W. | 1.5kg(1M) / 0.8kg(0.5M) /0.5kg(0.3M) | ||||
| Input Voltage Range | DC24V | ||||
| Watts | 24W(1M) / 12W(0.5M) / 6W(0.3M) | ||||
| Power Factor | ＞0.9 | ||||
| Housing Material | Tensile Aluminum + die-cast aluminium | ||||
| Color | Matt black / Grey | ||||
| Cooling | Natural convection cooling | ||||
| Control Protocol | ON/OFF | DMX512 | DMX512 | DMX512 | DMX512-RDM |
| Segmented Control | / | 4Section(1M)/2 Section(0.5M)/1Section(0.3M) | 4 Section(1M) | ||
| Channel | / | 4 / 6 / 7 / 16 CH | |||
| Power /Installation | Independent | ||||
| Conection | 3pin rubber cable:input/output | black rubber cable 5 Pin In & Out | |||
| Power Linking | 6cs(1m) / 12pcs(0.5m) /24pcs(0.3m) | ||||
| DMX Linking | / | 32pcs(1M) / 64pcs(0.5M) / 128pcs(0.3M) | |||
| Certification | CE,RoHS | ||||
| IP Grade | IP65 | ||||
FAQ:
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the fault?
A: Firstly: Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly: during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
