상세 정보 |
|||
| 제품명: | 실외 벽 세탁기 픽셀 제어 | 주택 색상: | 검은색 |
|---|---|---|---|
| 힘: | 140W | 입력 전압: | AC100-240V, 60Hz/50Hz |
| IP 등급: | IP65 | 보증: | 1년 |
| CCT: | 3000K | 빔 각도: | 20' , 20*40' |
| 채널: | 4/6/8/56CH | 밝은 색: | RGBW |
| 재료: | 알루미늄 합금 | 크기: | 978*141*179mm |
| 전압: | AC110-240V | 무게: | 6.2Kg |
제품 설명
Product Overview
The CT-002P is a professional-grade Stage LED Light Bar engineered for demanding outdoor environments. Built with a robust die-cast aluminum housing and an IP65 rating, it delivers both durability and a refined aesthetic, ideal for stage productions and outdoor lighting installations.
Advanced Lighting Performance
Featuring 14 high-output 10W RGBW 4-in-1 LEDs, the CT-002P produces rich, saturated colors and seamless color blending. With selectable beam angles of 20° and 40°, it offers exceptional flexibility to create dynamic and engaging visual atmospheres.
Pixel-Level Control
Unlock creative potential with individual pixel control, allowing precise command over each LED. This enables the design of intricate lighting patterns and captivating visual displays for a fully customized experience.
User-Friendly Operation

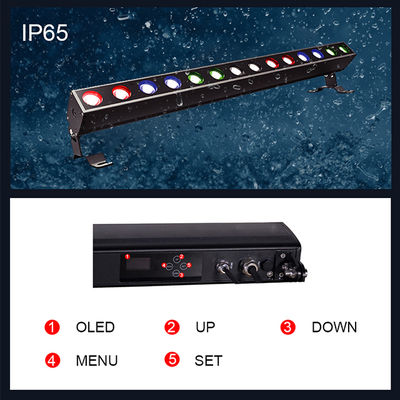

An integrated OLED display and four tactile touch buttons provide intuitive access to settings and functions. Easily navigate lighting modes, adjust parameters, and control operation directly from the unit.
Smooth Dimming & Seamless Performance
Experience professional 16-bit dimming for flawless light intensity adjustments and smooth transitions, ensuring accurate and consistent lighting output in any scenario.
Built for the Elements
With its IP65 protection, the CT-002P stands up to harsh outdoor conditions, making it a dependable choice for stage events, architectural lighting, and outdoor installations.
Summary
The CT-002P Stage LED Light Bar combines superior color performance, precise control, and rugged construction into a versatile lighting solution. Whether for stage or outdoor applications, it delivers the reliability and creative control professionals demand.
Technical Data
| Item No. | CT-002P |
| Light Source | 14Pcs*10W RGBW 4-in-1 LED |
| Max. Power | 85W |
| Work voltage | AC100-240V,50-60Hz |
| Beam angle | 20Degree, 20*40D |
| Luminous flux | 1087lm |
| Control Protocal | DMX512, RDM |
| DMX Channels | 4,6,8,56CH |
| IP Grade | IP65 |
| Certificate | CE&RoHS |
| Product's dimension | 978*141*179MM |
| Net Weight | 6.2kg |

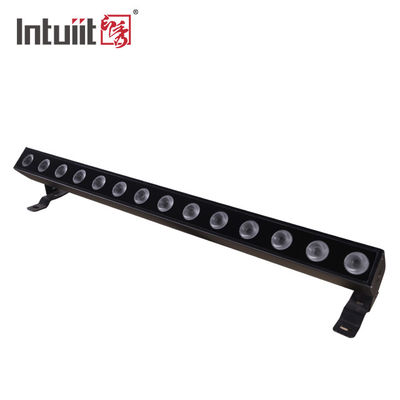

Appearance

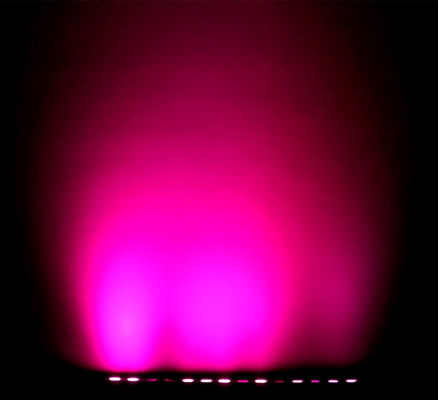

Light Distribution Data

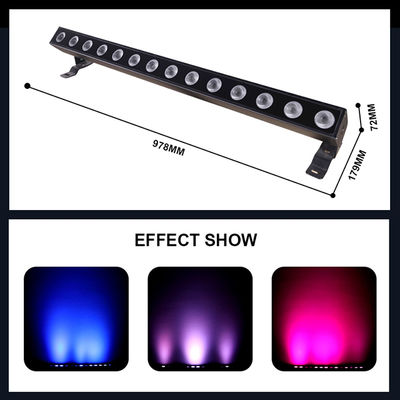

Product's Dimension
Installation Diagram
FAQ
Q1. Can I have a sample order for led light?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable
Q2. What about the lead time?
A: Sample needs 5~15 days, mass production time needs 25~35days
Q3. Do you have any MOQ limit for led light order?
A: MOQ20 to 50, 1pc for sample checking is available
Q4. How do you ship the goods and how long does it take to arrive?
A: We usually ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping also optional.
Q5. How to proceed an order for led light?
A: Firstly:let us know your requirements or application.
Secondly:We quote according to your requirements or our suggestions.
Thirdly:customer confirms the samples and places deposit for formal order.
Fourthly:We arrange the production.
Q6. Is it OK to print my logo on led light product?
A: Yes. Please inform us formally before our production and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer 1, 2 , 5 year warranty to our products.
Q8: How to deal with the faulth?
A: Firstly:Our products are produced in strict quality control system and the defective rate will be less than 2%.
Secondly:during the guarantee period, we will send new spare parts for replacement. For defective batch products, we can discuss with the real situation.
Q9: Do you work a project?
A: Sure. We have more than 50 engineers and a EPC department. We are a national high-tech enterprise which integrates with " Lighting Design, Product R&D and manufacturing, control & programming, installation, Maintenance and upgrading".
